OBD SHIELD PRO

Solar Trickle Charger 12V Kit IP65 Waterproof

Solar Trickle Charger 12V Kit IP65 Waterproof

$25.00
$25.00
Sale Sold out

12V 10W Solar Panel Kit IP65 Waterproof

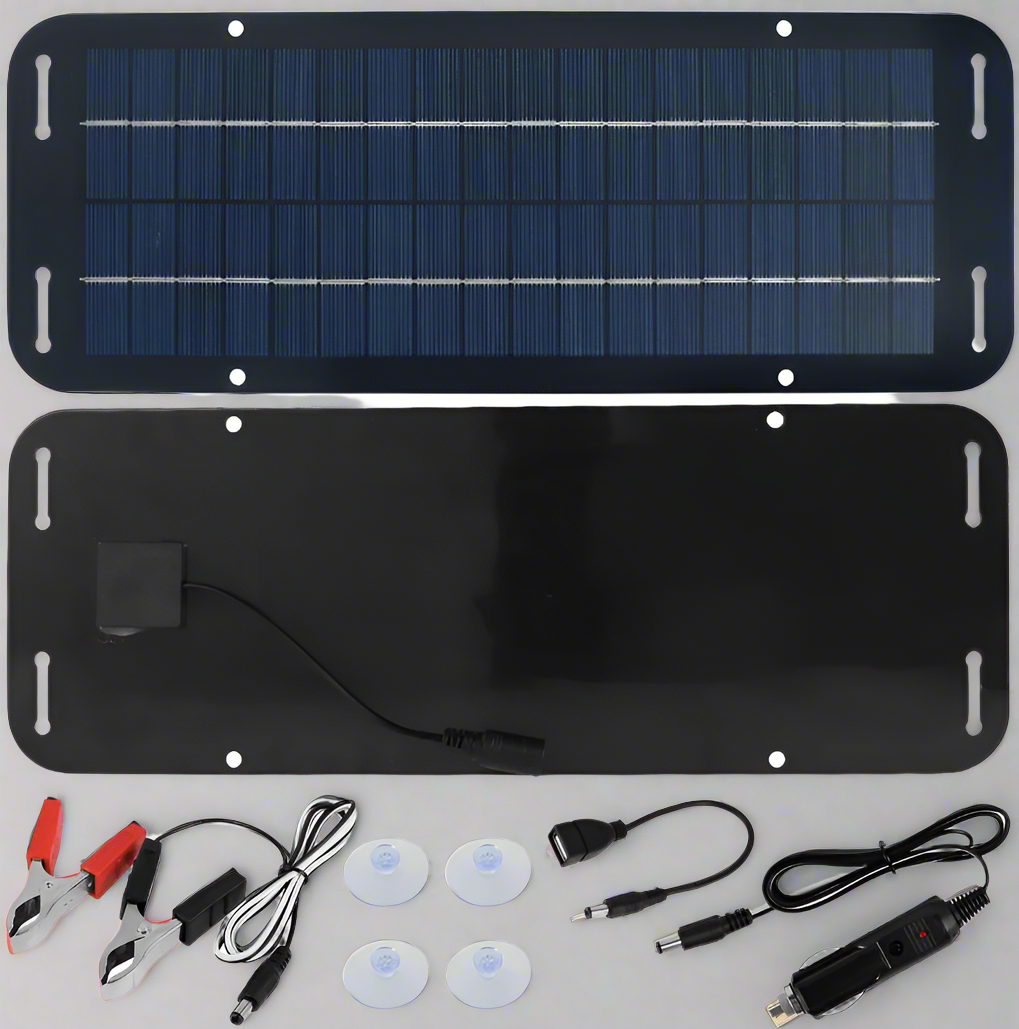

Parts List:

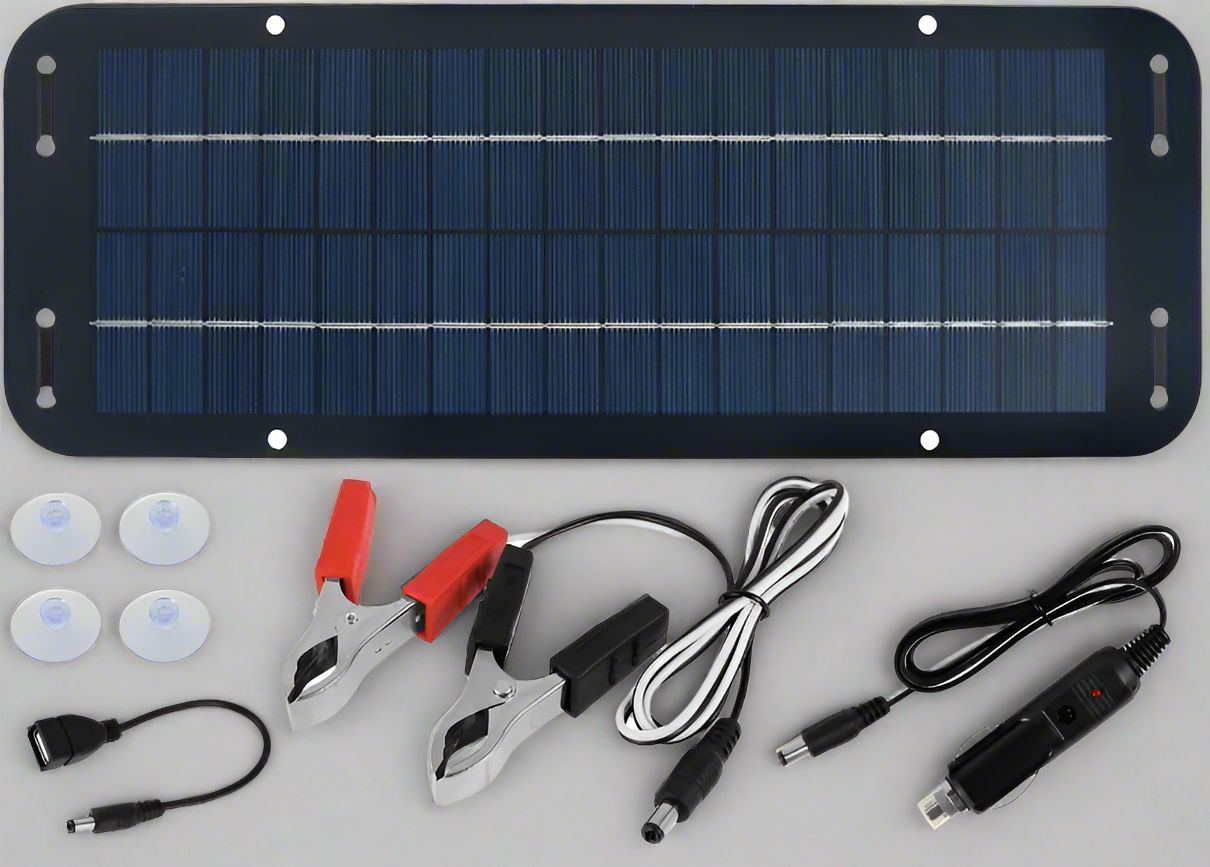

1 x Solar Panel with Accessories 4 x Suction Cups 1 x Car Charger 1 x Dual Head Clamp 1 x USB Female Cable

Feature:
High Efficiency Solar Panel, The product adopts a new conversion way to double the working current of the solar output with the same area and power, providing good performance even in poor light conditions, and the internal diode prevents current leakage at night.

Multiple Protection and Reliable, The solar trickle charger comes with overcharge and reverse discharge protection module, safe to use. Solar panel charger size: 35x12.5cm, easy to carry.

Long Service Life, Advanced encapsulation material with multi-layer laminated sheets improves the performance and extends service life. The module can withstand high wind pressure, snow load and extreme temperatures.

Wide Application, This solar trickle charger is used for all kinds of vehicles, RVs, campers, tractors, motorbikes, snowmobiles, boats and more.

Specification:

Item Type: 10W  Solar Panel Kit
Material: ABS, Monocrystalline Silicon
Weight: Approx. 382.00g
Solar Panel Power: 10W
Voltage: 12V

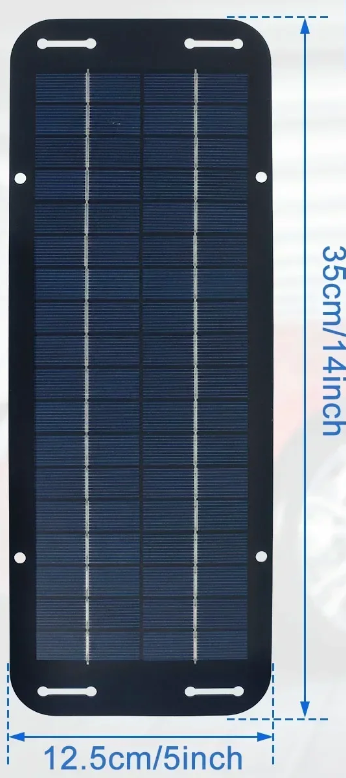

Solar Panel Size: Approx. 35x12cm

Note:

The solar panel does not have a power storage function.

View full details

Installation Instructions

1. Choose a Sunlit Location

Place the solar panel where it receives direct sunlight. For best results, angle the panel toward the sun.

2. Mount the Solar Panel

Use the included suction cups to attach the panel to a windshield, dashboard, or window. Ensure the surface is clean for secure adhesion.

3. Connect the Output Cable

Choose your preferred connection method:

- Car Charger: Plug directly into the vehicle’s cigarette lighter socket.

- Alligator Clamps: Attach red clamp to battery positive (+) and black clamp to negative (–).

- USB Female Cable: Use for compatible USB-charging applications (requires USB adapter for devices).

- ⚠️ Important: Ensure correct polarity when using clamps. Red to positive (+), black to negative (–).

Operating Tips

- Place the panel in direct sunlight whenever possible.

- The solar panel outputs power only when exposed to light.

- This device does not store energy; it functions as a live trickle charger.

- Regularly check cable connections to ensure a safe and stable link.
